Vue d’ensemble
Description rapide
- Point d'origine:
-
Guangdong, China
- Marque nom:
-
Yonlit
- Numéro de Type:
-
Yonlit PA
- Fréquence:
-
GSM DCS Wifi LTE, Adapté Aux Besoins Du Client
- Gain:
-
30-60dB
- Couleur:
-
Argent
- Puissance de sortie:
-
Peut être personnalisé
- Poids:
-
1-2KG
- Fonction:
-
Amplifier
- Type:
-
UHF VHF LS C X Bande Ku
- Taille du produit:
-
250*170*28mm ou autre,
- Harmonique:
-
≥ 15/50 dBc/ ≥ 40 dBc
- Connecteur:
-
SMA/N
Emballage et livraison
- Unités de vente :
- Article unique
- Taille du paquet individuel :
- 27X17X2.8 cm
- Poids brut par article :
- 1.500 kg
- Type d’emballage :
- wooden/ carton Box
- Exemple de photo :
-
- Délai : :
-
Quantité(unités) 1 - 10 >10 Durée estimée (jours) 15 À négocier

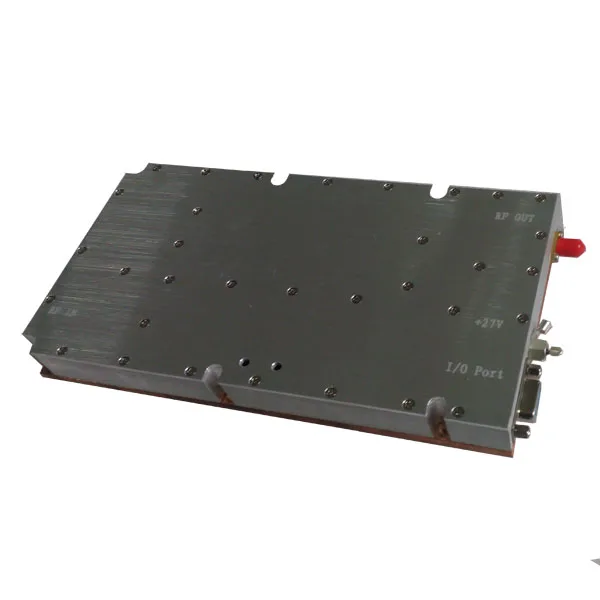

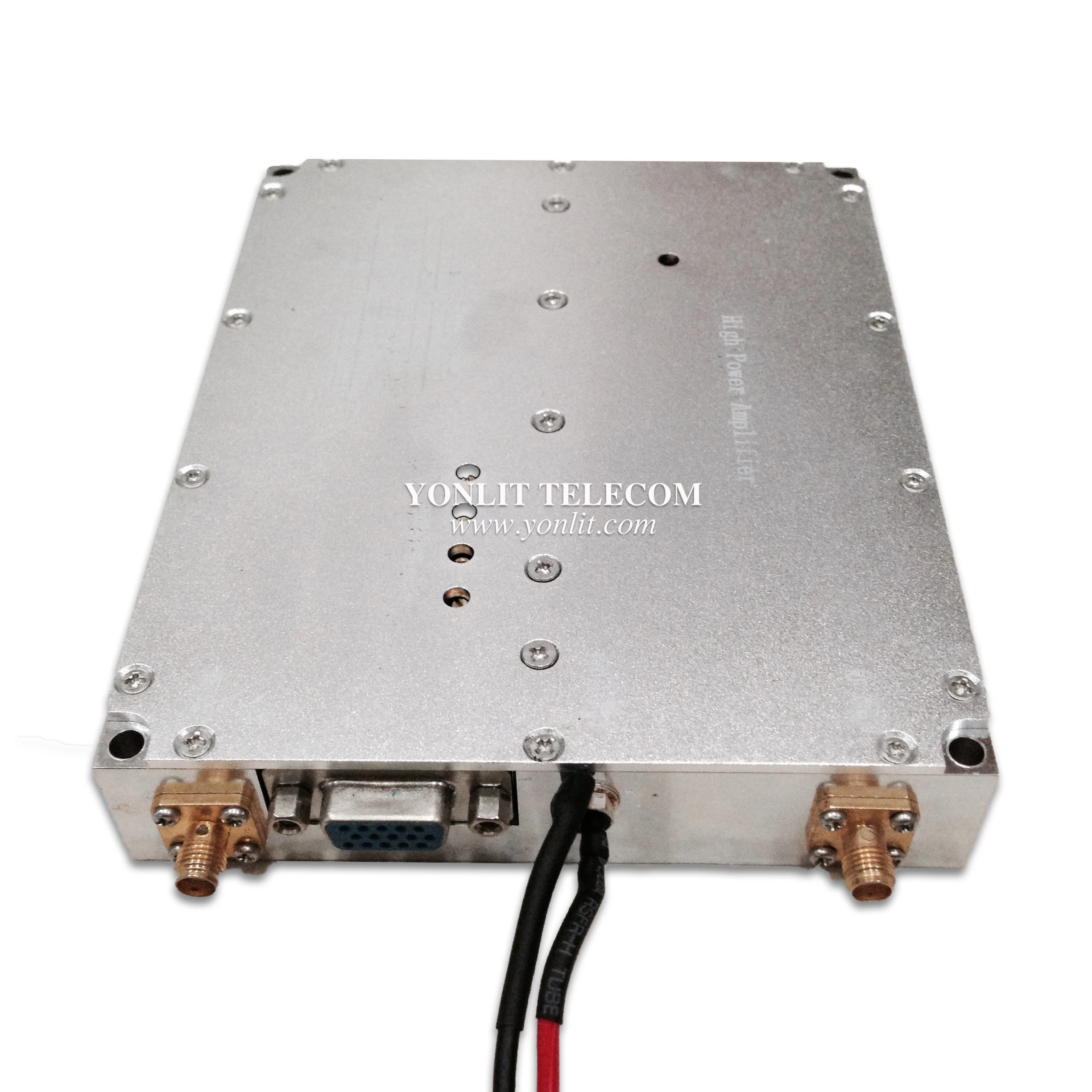

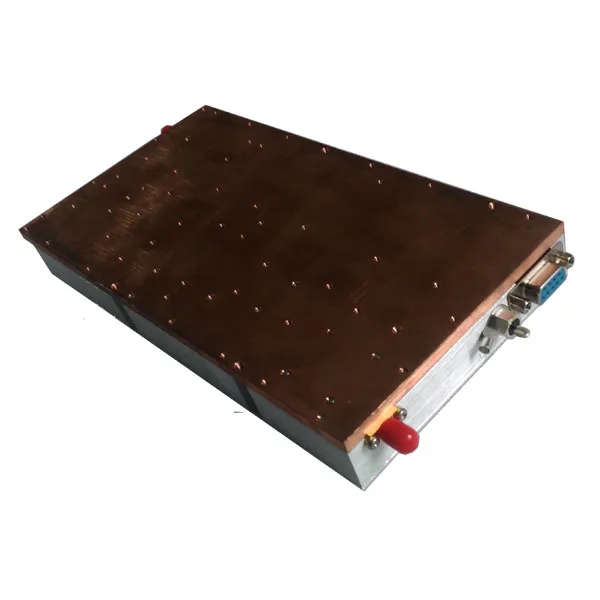

Mobile Module 5G signal PA 3500-3600Mhz 2020 RF PA high Power amplifier for UAV Jammer
Product Description
We have several kinds with diffrent Frequency Band, Gain, Output Frequency , etc. for your choosing:
Item
|
Requirements
|
Frequency Range
|
3500-3600MHz
|
Gain
|
≥50dB
|
In-Band Ripple
|
≤2dB
|
Max RF Input
|
10dBm
|
Input Signal
|
CW
|
Max RF Output Power
|
≥52dBm
|
Gain Adjust Range
|
0-31dB
|
Input/Output VSWR
|
≤1.3
|
Working Voltage
|
28VDC
|
Working Current
|
≤18A(Full Power)/PA
|
RF Input/ Output Ports
|
SMA-Female/N--Female
|
Power Supply Interface
|
2W2-Male
|
Dimension
|
Less than 250x170x28mm
|
Working Temperature
|
-25 to 65
|
Monitoring function (DB15,Female)
|
PIN1: 1dB Attenuation
|
PIN2: 2dB Attenuation
| |
PIN3:4dB Attenuation
| |
PIN4: 8dB Attenuation
| |
PIN5:16dB Attenuation
| |
PIN 1~5: (Hang in air or add 5VDC: No attenuation; Grounding: attenuation)
| |
PIN7: V/L, VSWR(reflected RF Power, Max voltage,3.3V; 0.1V/1dBm)
| |
VSWR Alarm TTL High(5V)@reflected power 25~50W –the alarm is not latched signal
| |
PIN10:P/L(Output RF Power; Max voltage,3.3V; 0.1V/1dBm)
| |
PIN11: LE :Enable, High Level: OFF; Low Level: ON
| |
PIN14: T/L temperature Monitor VT(10mV)*Tc(℃)+500(mV)->TC=Case temperature +/- 5℃Over Temp Alarm and shutdown: High(5V)-case temp.85+/-5℃ –Auto Restart Low@case temp.65℃
| |
PIN15: GND
| |
Other: NC
|
Feature:
l The general Power Amplifier can be used for Jammer, BDA, Repeater, BTS, or Lab equipment.
l Pout is stable over -20~65℃
l Efficiency is more than 30% for 50W
l Over-high VSWR to avoid or reduce the damage from any mismatch
l Over-high temperature protection, Shutdown more than 75℃, auto-restart less than 50℃
l DB15 serial port is standard, DB9 Parallel RS485 is optional(China Mobile Protocol)
Remarks
l PA should operate on an appropriate radiator, or it would shutdown over high-temperature.
l Pout port can't open or short, otherwise PA maybe get burned and damaged.
l Pout
port should be connected to a probably Load, Attenuator or antenna (50
ohms, more than 100W handling Power, lower than VSWR 2.0).
l The power range and polarity of power supply must correct, otherwise will damage the PA.
l Pout
probably is lower the rated power if input Power is lower than 5dBm; PA
probably is damaged if input power is higher than15dBm
